Increasing and proving in-line security fail-safe for a Bank

Category: Case study
Published: 15th June 2022

< Back to Media
Person using laptop in office

16th April 2022

Resilient connection of Intrusion Prevention Systems to a critical UK banking network

The objective

To keep up with the increased demand for its internet banking applications and Government guidance/regulation (such as CBEST, CREST and PCI), our customer wanted to add further in-line security with the ability to share the load between filtering devices and ensure automatic fail-over in the event of an IPS device failure or degradation of performance. It was also imperative that the overall security and resilience capability could easily scale with inevitable future growth.

Needing to see how the security protection and resilience capability would work in context to its unique environment, the bank wanted to work with a solution partner of exceptional technical ability, so chose Red Helix to help design, provision, proof-test and implement the security fail-safe connection solution.

The solution

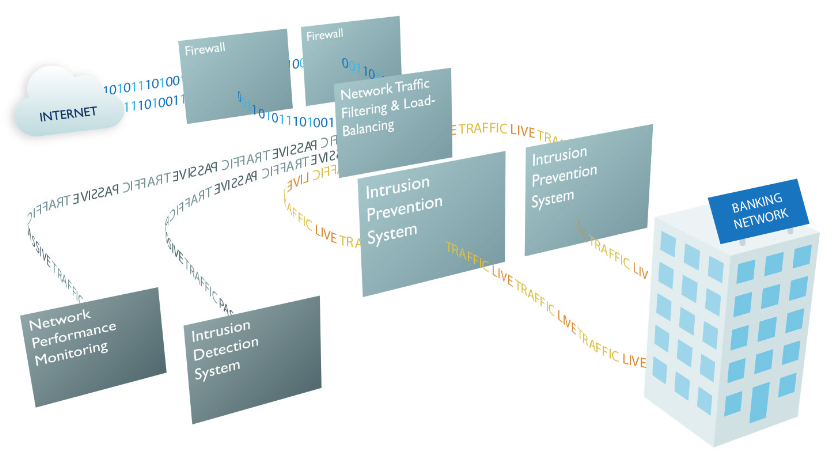

Network TAPs were placed in the optimal positions to feed data to the advanced feature Network Packet Brokers.

The advanced features required to deliver security resilience included:

  • In-line Fail-Safe – automatically re-routing traffic to another IPS and performance monitoring layer in the event that an in-line security tool should fail, or be taken offline
  • Load Balancing – to aggregate the data links and evenly spread security monitoring duties across multiple IPS and send traffic copies to network performance monitoring probes

To further increase the resilience of the solution, the health of each security device was individually monitored and corrective action was automatically triggered to ensure security uptime.

To achieve this, the Security Visibility layer was configured to send and receive heartbeat packets, and in the event of an IPS going offline or experiencing a performance dip, traffic would be automatically sent to another IPS.

Proof-testing scenarios

Prior to going live with the new IPS, the customer sought certainty that traffic would instantly divert to an alternative IPS in the event another such device should fail or experience a performance dip.

The customer also needed to know the desired IPS were right for their unique environment. The only way to know how they would perform was to test them under the real scenarios in which they would need to excel.

To achieve both objectives, we replicated the customer’s intended security production environment and injected high volumes of stateful application traffic riddled with malware.

This allowed us to:

  • Measure the IPS’ ability to locate and prevent malware from entering the network
  • Share the malware filtering load between IPS during peak utilisation periods
  • Ensure the desired continuity path came into action if an IPS failed

The proof-testing scenarios also enabled us to show the real-world throughput performance results were well within the scope of the bank’s requirements.

The outcome capability

The addition of the new Intrusion Prevention Systems was an important step to the bank’s ability to better defend against the ever-growing threats of cyber-crime.

However, the building of the Security Visibility layer for in-line fail-safe significantly enhanced the bank’s overall security maturity. In the event of an IPS failing or being taken offline for configuration updates, advanced security protection filtering could continue without impacting network availability.

The solution also provided the flexibility to quickly add or reconfigure other security protection and analysis layers – such as DDoS Mitigation, Malware Sandbox and Intrusion Detection Systems – making the Security Visibility layer a truly scalable solution allowing both security posture and fail-safe capability to grow with the evolution of the network.

Furthermore, with a 24/7/365 service wrap in place, the customer can contact us any time for dedicated technical support and guidance for anything related to the design and configuration of the Security Visibility layer.
